AlphaWeld VCF-25R-BK

Sub Category: Vermiculite

Description

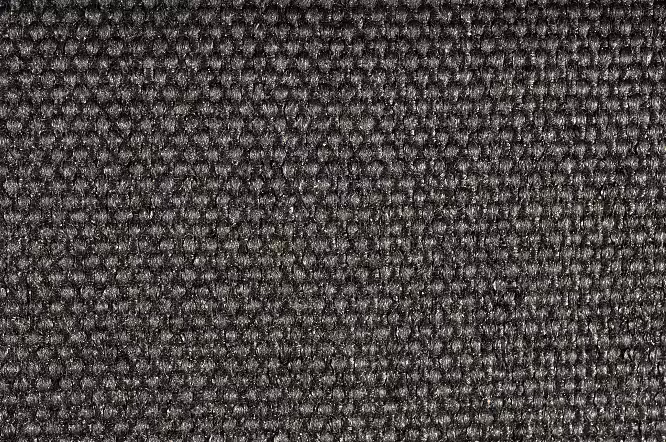

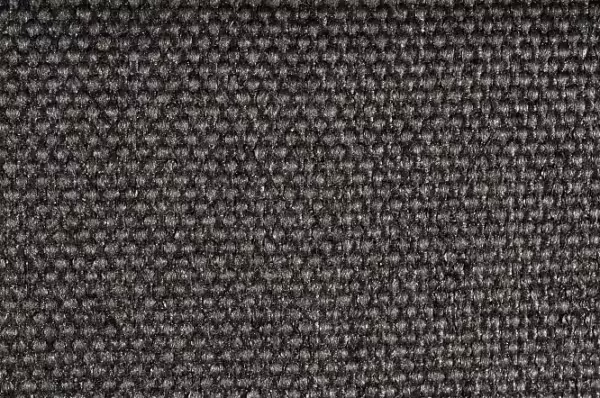

AlphaWeld Style VCF-25R-BK is a heavyweight, plain weave fiberglass fabric coated with a vermculite compound that imparts excellent resistance to high temperatures. ANSI/FM 4950 approved for welding curtains.

APPLICATIONS

Can be used as a flame or heat barrier material on many applications such as the hot side of insulation blankets, radiation heat shields and any other application where a thermal barrier is required.

Coating Type: VERMICULITE
Industries: CHEMICAL, CONSTRUCTION, INDUSTRIAL INSULATION, METAL PROCESSING, MILITARY, MINING, OIL AND GAS, PETROCHEMICAL, POWER GENERATION, PULP/PAPER, REFRACTORY AND FOUNDRY, RENEWABLE ENERGY

Upper Continuous Operating Temperature (°F): 1200

Additional Specifications

Additional information

Width

60"

Roll Length

50

Color

Black

Base Fabric

2150 Untreated

Coating Type

VERMICULITE

Thickness (in.) ASTM-D-1777

0.042

Weight (oz/sy) ASTM-D-3776

25.5

Upper Service Temperature Limit, Continuous (°F)

1200

Tensile Strength ASTM-D-5035

400

Tear Strength ASTM-D-5587

50

Flame Resistance - Afterglow (sec) ASTM D-6413

1

Flame Resistance - Flameout (sec) ASTM D-6413

0

Flame Resistance - Char Length (in.) ASTM D-6413

0.125
