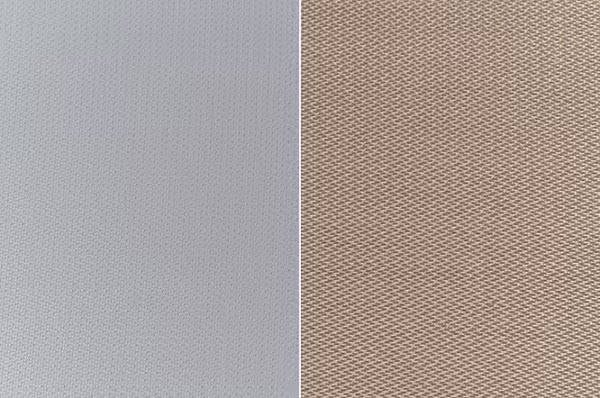

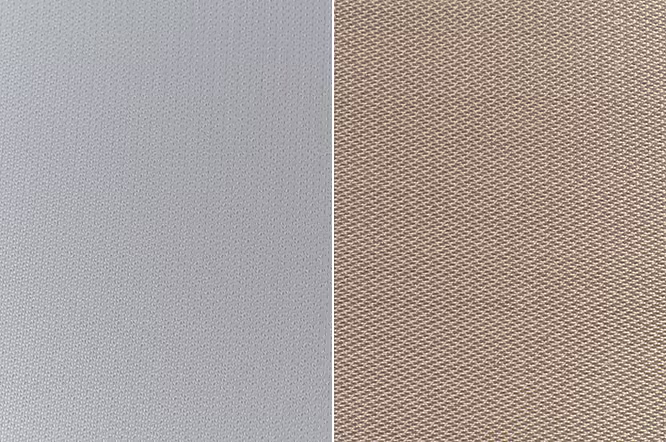

Alpha Maritex Style FCF-1650 is a fluorocarbon – impregnated and coated fiberglass fabric designed for use in removable blankets as a weather/chemical resistant barrier. This fabric is easily sewn and is flexible enough to conform to intricate shapes. The fluorocarbon impregnation and coating is extremely resistant to most industrial chemicals and has been in applications to 600° F. This STANDARD DUTY product can be manufactured to meet the requirements of NRC Guide 1.36 and Military Specification MIL-I-24244.
APPLICATIONS Removable blankets for valves, flanges, pumps, instrumentation and freeze protection.
ADVANTAGES – Low Flammability. -Good Chemical Resistance. -Excellent Cleanability. -Excellent Abrasion Resistance. -Minimal Smoke Levels. -UV Resistance.
Lower Continuous Operating Temperature (°F): -150
Upper Continuous Operating Temperature (°F): 600
| Width | 60" |
|---|---|
| Roll Length | 50 |
| Color | Grey, Silver, White, Black, Metallic, Orange, Blue, Green |
| Base Fabric | 332 9383 |
| Coating Type | PTFE |
| Thickness (in.) ASTM-D-1777 | 0.017 |
| Weight (oz/sy) ASTM-D-3776 | 16.7 |
| Lower Service Temperature Limit (°F) | -150 |
| Upper Service Temperature Limit, Continuous (°F) | 600 |
| Tensile Strength ASTM-D-5035 | 423 |
| Tear Strength ASTM-D-5587 | 60 |
| Burst Strength ASTM-D-3786 | 650 |
| UV Resistance ASTM-G-154 | 1000 hrs; no change in tensile |
