AVSil® Silica 32oz- BT32T

Sub Category: AVSil Silica

Description

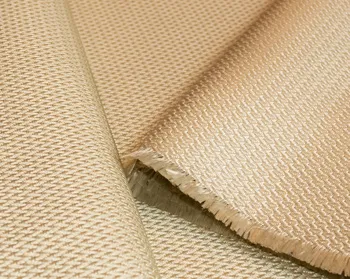

AVSil® BT32T broken twill silica fabric is a high temperature silica fabric with a melting point of 3000°F (1649°C). AVSil® BT32T is capable of handling intermittent and continuous temperatures up to 1900°F (1038°C). The unique broken twill weave construction improves handling properties over the conventional satin weave construction. AVSil® BT32T is also treated with a proprietary surface finish to further improve handing and thermal properties.

Applications – AVSil® BT32T broken twill silica fabric is ideal for making textile fabricated parts for high temperature welding, industrial, and automotive applications. AVSil® BT32T broken twill silica fabric is typical used in the fabrication of removable insulation covers, welding curtains, drop cloths, stress relief blankets, protective screens/covers, thermal pads, furnace curtains, insulation mats and cable tray wraps.

Industries: AEROSPACE, AUTOMOTIVE, CHEMICAL, EV BATTERIES, HEAVY MACHINERY, INDUSTRIAL INSULATION, MARINE, METAL PROCESSING, MILITARY, MINING, OIL AND GAS, PETROCHEMICAL, POWER GENERATION, PULP/PAPER, REFRACTORY AND FOUNDRY, RENEWABLE ENERGY, SHIPBUILDING, WELDING AND CUTTING

Upper Continuous Operating Temperature (°F): 1900

Additional Specifications

Additional information

Width

60"

Roll Length

25

Color

Tan

Thickness (in.) ASTM-D-1777

0.045

Weight (oz/sy) ASTM-D-3776

32

Upper Service Temperature Limit, Continuous (°F)

1900

Tensile Strength ASTM-D-5035

610
