AlphaTex 4025 9383

Description

DESCRIPTION

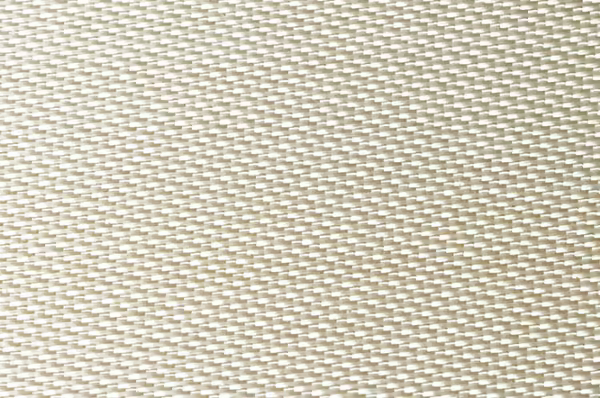

AlphaTex 4025 9383 is a woven, alkali-free, aluminosilicate fiberglass fabric designed for high flexibility, tear resistance, and puncture toughness. AlphaTex 4025 9383 is designed for both greater high temperature stability via high silica, alumina, and calcium oxide content and superior protection against corrosion under insulation potential with lower leachable fluoride, sodium, and potassium ion contamination versus competitive products on the market today.

ADVANTAGES
Greater thermal stability, lower propensity to contribute to corrosion under insulation, low flame-smoke-and toxicity, easily sewn, and has a thin lightweight profile.

APPLICATIONS
This product is the next generation in high-temperature removable pads, flange covers, and valve covers. It is used as a flame or heat barrier material in many applications such asthe hotside of insulation blankets, radiant heat shields, and any other application where a thermal barrier is required. It is an effective replacement for asbestos mats, millboard, ceramic or refractory fiber paper mat & sheets, and mineral fiber boards. Where thermal resistance and flexibility are mandatory for thermal insulation or gasketing material in home and industrial furnaces, package boiler, and piping applications, AlphaTex 4025 9383 is the industry choice.

Industries: Industrial Insulation, Power Generation, Petrochemical, Oil and Gas, Welding and Cutting

Lower Continuous Operating Temperature (°F): -65

Upper Continuous Operating Temperature (°F): 1400

Additional Specifications

Additional information

Width

up to 60"

Color

Tan

Base Fabric

HR Glass, Plain Weave

Thickness (in.) ASTM-D-1777

0.029

Weight (oz/sy) ASTM-D-3776

17.3

Lower Service Temperature Limit (°F)

-65

Upper Service Temperature Limit, Continuous (°F)

1400

Upper Service Temperature Limit, Short Term/Intermittent (°F)

1472

Tensile Strength, Warp ASTM-D-5035 (lb/in.)

488

Tensile Strength, Fill ASTM-D-5035 (lb/in.)

460

Flame Resistance - Afterglow (sec) ASTM D-6413

1

Flame Resistance - Flameout (sec) ASTM D-6413

1

Flame Resistance - Char Length (in.) ASTM D-6413

1.0

Ends per Inch ASTM-D-3775

20 (±2) x 14 (±2)
