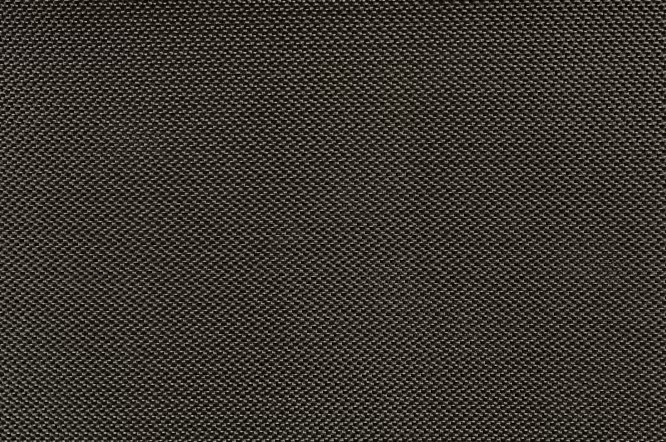

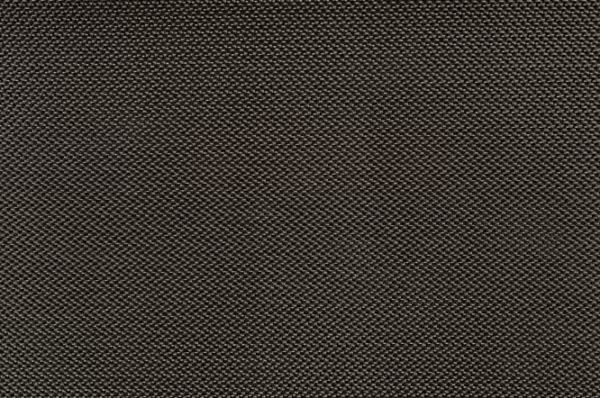

Alpha’s Style 4032-2-AB is a crowfoot satin weave fiberglass fabric coated with black pigmented acrylic. ANSI/FM 4950 approved for welding curtains.
APPLICATIONS Alpha’s Style 4032-2-AB is ideal as an economy grade welding curtain for vertical applications such as spark or spray containment, grinding shields, flash barriers for welding arcs and as a weather barrier for outdoor welding operations.
ADVANTAGES The acrylic coating provides water and oil resistance and keeps the fabric from fraying during fabrication. The fabric has good resistance to fire and does not emit excessive smoke.
Upper Continuous Operating Temperature (°F): 1000
| Width | 60" |
|---|---|
| Roll Length | 50 |
| Color | Black |
| Base Fabric | 332 Untreated |
| Coating Type | ACRYLIC |
| Thickness (in.) ASTM-D-1777 | 0.015 |
| Weight (oz/sy) ASTM-D-3776 | 14 |
| Upper Service Temperature Limit, Continuous (°F) | 1000 |
| Tensile Strength ASTM-D-5035 | 350 |
| Tear Strength ASTM-D-5587 | 50 |
| Burst Strength ASTM-D-3786 | 600 |
| Flame Resistance - Afterglow (sec) ASTM D-6413 | 1 |
| Flame Resistance - Flameout (sec) ASTM D-6413 | 1 |
| Flame Resistance - Char Length (in.) ASTM D-6413 | 1 |
