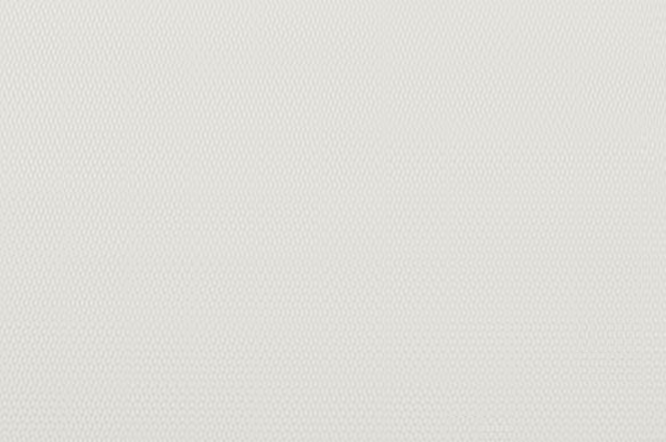

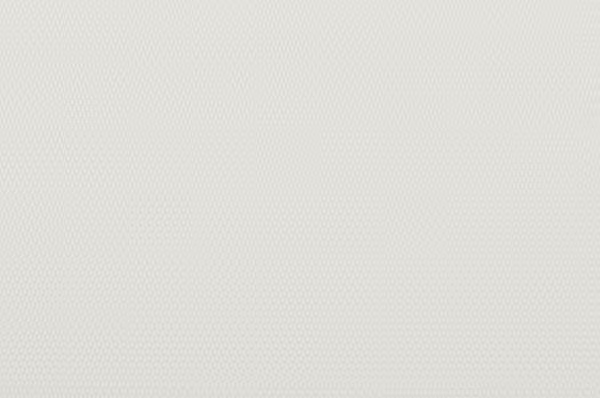

Alpha Shield® Style 332-AMA is a laminate of fiberglass fabric and vacuum metallized polyester film.
APPLICATIONS
Alpha Shield® Style 332-AMA is designed as a thermal barrier fabric to protect people and equipment from high levels of radiant energy. Its highly reflective surface rejects up to 90% of the heat from sources as high as 3000 °F
Lower Continuous Operating Temperature (°F): -65
Upper Continuous Operating Temperature (°F): 450
| Width | 60" |
|---|---|
| Roll Length | 50 |
| Co-Part | Standard |
| Base Fabric | 332 Untreated |
| Thickness (in.) ASTM-D-1777 | 0.015 |
| Weight (oz/sy) ASTM-D-3776 | 14 |
| Lower Service Temperature Limit (°F) | -65 |
| Upper Service Temperature Limit, Continuous (°F) | 450 |
| Tensile Strength ASTM-D-5035 | 450 |
| Tear Strength ASTM-D-5587 | 40 |
| Flame Resistance - Afterglow (sec) ASTM D-6413 | 1 |
| Flame Resistance - Flameout (sec) ASTM D-6413 | 0 |
| Flame Resistance - Char Length (in.) ASTM D-6413 | 0.7 |
