Alpha Maritex 3201-2-SS

Sub Category: Silicone

Description

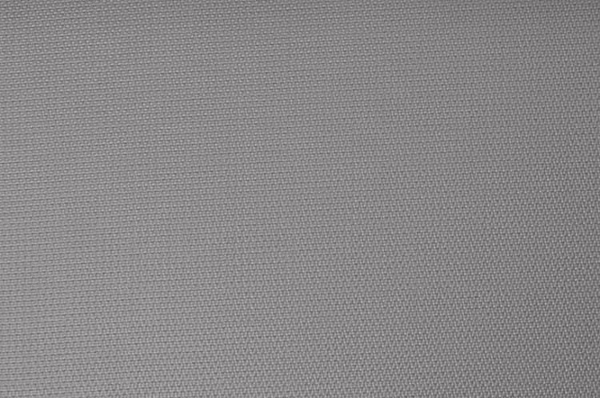

Alpha Maritex Style 3201-2-SS is a fiberglass fabric coated with a specially formulated silicone rubber designed to meet the rigid requirements for use in nuclear reactors. This special high temperature, flame retardant silicone rubber provides greater life and improves resistance to abrasion flexing, tear and puncture. Alpha Maritex Style 3201-2-SS can be certified to meet the requirements of MIL-I-24244 and Nuclear Regulatory Guide 1.36.

ADVANTAGES
Aluminum Color, UV Resistant, Low Smoke, Water and Oil Resistant, Can be easily sewn, Flame Retardant, Lightweight, Chemical Resistant, Easy to Fabricate.

APPLICATIONS
Removable Insulation Blankets, Expansion Joints, Welding Curtains, Equipment Covers, Flange Covers, Safety Clothing. This product is designed specifically for high temperature (500 °F) removable blankets, and flange and valve covers where a very soft and flexible fabric is desired or needed.

Coating Type: SILICONE
Industries: CHEMICAL, CONSTRUCTION, INDUSTRIAL INSULATION, METAL PROCESSING, MILITARY, MINING, OIL AND GAS, PETROCHEMICAL, POWER GENERATION, PULP/PAPER, REFRACTORY AND FOUNDRY, RENEWABLE ENERGY

Lower Continuous Operating Temperature (°F): -85

Upper Continuous Operating Temperature (°F): 500

Additional Specifications

Additional information

Width

60"

Roll Length

50

Color

Silver, Carlsbad Canyon, Juniper Green, Dark Juniper Green, Covert Green, Mocha Gold, Shale Green, White, Black, Yellow

Base Fabric

332 Untreated

Coating Type

SILICONE

Thickness (in.) ASTM-D-1777

0.017

Weight (oz/sy) ASTM-D-3776

16.75

Lower Service Temperature Limit (°F)

-85

Upper Service Temperature Limit, Continuous (°F)

500

Tensile Strength ASTM-D-5035

300

Tear Strength ASTM-D-5587

50

Burst Strength ASTM-D-3786

600

Flame Resistance - Afterglow (sec) ASTM D-6413

1

Flame Resistance - Flameout (sec) ASTM D-6413

2.5

Flame Resistance - Char Length (in.) ASTM D-6413

0.3

UV Resistance ASTM-G-154

1000; no change in tensile
