ALPHA TEMP-MAT 1″ Mat Mil I 16411F

Sub Category: Alpha TempMat

Description

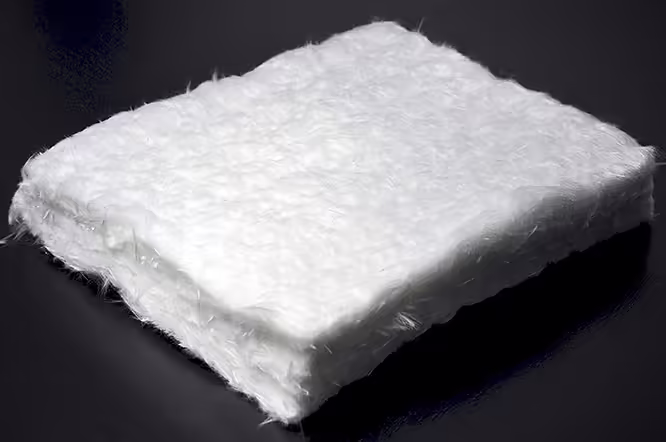

ALPHA TEMP-MAT is manufactured to conform with the requirements of Military Specification MIL-1-16411 Type II, ASTM-C-1086-96 and Coast Guard Specification for Incombustible Materials #164.009 and MIL-I-24244. TEMP-MAT is a fiberglass mat composed of 100% “E” type glass fibers 9-13 microns ln diameter which are put into web form and mechanically needles together without chemical binders.

ADVANTAGES

ALPHA TEMP-MAT is an effective low cost replacement for asbestos mats, millboard, ceramic or refractory fiber paper, mat and sheets and mineral fiber boards. It is used as a thermal insulation and gasket material in home and industrial furnaces, package boiler and for special piping applications where heat resistance, flexibility and low special air and liquid chemical and thermal resistance are mandatory.

Industries: CHEMICAL, CONSTRUCTION, INDUSTRIAL INSULATION, METAL PROCESSING, MILITARY, MINING, OIL AND GAS, PETROCHEMICAL, POWER GENERATION, PULP/PAPER, REFRACTORY AND FOUNDRY, RENEWABLE ENERGY

Lower Continuous Operating Temperature (°F): -80

Upper Continuous Operating Temperature (°F): 1200

Additional Specifications

Additional information

Width

60"

Roll Length

225

Thickness (in.) ASTM-D-1777

1

Weight (oz/sy) ASTM-D-3776

135

Lower Service Temperature Limit (°F)

-80

Upper Service Temperature Limit, Continuous (°F)

1200

Tensile Strength ASTM-D-5035

125
